THE BEST DIGITAL DENTAL MODELS

SCANNERS AND SOFTWARE SOLUTIONS

AT THE BEST PRICE

Digital DENTAL Models, SCANNERS AND SOFTWARE



PURCHASE YOUR OWN SCANNING SYSTEM

THE NEW ORTHOSCAN A50 LED IS HERE! 64 Bit Scanning!

ORTHOSCAN A50 LED Scanner

Imagine having the power to scan your models in house... NOW YOU CAN AND NO PAY PER USE FEES.
The best value 3D  Model Scanning System for your dental office is now available.

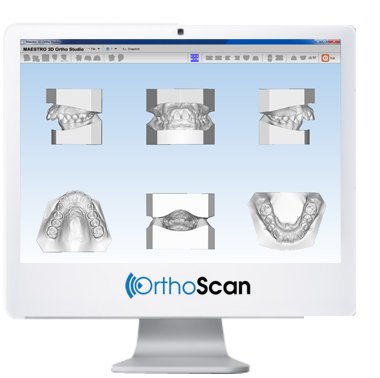

The Maestro OrthoScan A50 LED is the most powerful affordable Model scanner available today!  It’s very simple to use and is bundled with Maestro Easy Dental Scan ™ software. The  OrthoScan A50 LED is the safest scanner on the market and uses no dangerous lasers so its safer than a CD player!


Contact us today for a quote. Full installation and training is provided.

Click image for a video demonstration

  1. •Advanced - complete acquisition of undercuts


  1. •Quick - as quick as 90 sec for scanning and digitising a model.


  1. •Automatic - the scan and digitisation of data actually acquired for reaching the final 3D model is totally automatic


  1. •Stable - the projected light parameters and the camera parameters are automatically adjusted according to the ambient lighting and material properties and colour of the model to scan.


  1. •Robust - the scanner does not need any periodical maintenance or optical recalibration.







Full Model Technical Specifications


Points scanned  1.000.000 - 1.500.000

Resulting 3D model 15.000 - 1.000.000 triangles (configurable)

Resolution <0,07 mm

Accuracy   <10 microns

Scanner and Software Package

With the Maestro OrthoScan A50 LED creating Digital Models is quick and easy - you create and analyse your own 3D study models from poured stone models. This has a huge advantage over trying to deal with unreliable impression scanning, especially when coupled with scanning wax bites to align models. Most 3D experts agree scanning models is more efficient and trouble free. With this proven technology Maestro has become a leading manufacturer in affordable 3D Scanning Systems. TRU-LINE Dental (our parent company) has worked directly with Maestro 3D to help develop the most sophisticated user-friendly and affordable system to date.

When you order your OrthoScan A50 LED we will personally deliver and install it. We can also offer training for and your staff on all aspects of the scanning and analysing software. After sales support is only a phone call or email away. NO PAY PER USE FEES ..... EVER!



Technical Specifications

Number of cameras

2, high-resolution with high quality lenses


Projector 1 x LED 30,000 hour life.


Object movement

Rotary table


Operating voltage

110/220V


Scan surface

90 mm [W] * 90 mm [D] * 50 mm [H]


Interface

USB / SVGA


Output formats

STL, PLY, OBJ, ASC, XYZ, PTS, VRML, (open standard formats) (configurable)



Target objects

abutments, stumps, complete dental casts, fillings, bridges, antagonists, dental inlays, wax-ups, coverings, arms, etc.


Accuracy

<10 microns


Resolution

<0,07 mm


Resolution of 3D models

15.000-1.500.000 triangles (configurable)


Number of points acquired for single shot

786.432 (max)


Scanner dimensions

365 mm [W] * 480 mm [D] * 295 mm [H]


Weight

10 Kg


Operating temperature

+5 ÷ +40


Approved Regulations

CE









Recommended system requirements for hardware


Operating System

Microsoft Windows  7    64 Bit


CPU

Intel  i7 860 or better


Memory Ram

4 GB


Graphics Card

1 GB  Nvidia Video Card - Dual VGA Video Output

eg GT 220


ATI Cards are now supported.
